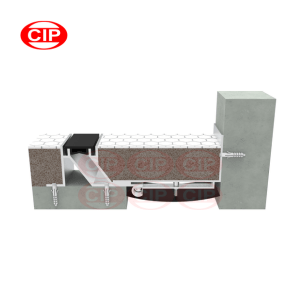

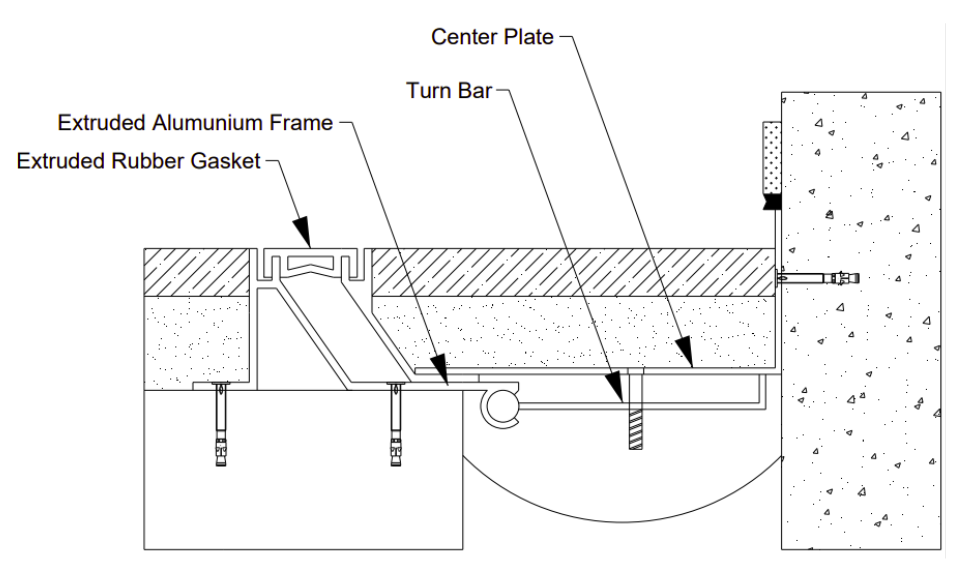

Flush Twin Line Covers
- Flexible seals provide a secure fit and yet retain optimal flexibility
- Dual seal design provides necessary movement ranges
- Ideal for high grade marble, granite, limestone and paver floor finishes
- Centering bar/compression spring assembly repositions the pan after seismic movement
- Flush rubber gasket minimizes sightline
- Snap-fit design for easy on-site assembly
- Gaskets available in many coordinating designer colors
- Featuring a POP UP system
| Joint Width (mm) | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Exposed Surface (mm) | 145 | 170 | 220 | 270 | 320 | 370 | 420 | 470 | 520 | 570 |
| Movement Capacity (mm) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Width of Plate (mm) | 95 | 120 | 170 | 220 | 270 | 320 | 370 | 420 | 470 | 520 |
| Thickness of Plate (mm) | 1.5 | 1.5 | 2 | 2 | 3 | 3 | 3 | 5 | 5 | 5 |
