Deskripsi
IMPERDAN FP 50 GP (10×1) adalah lembaran bitumen waterproofing dengan permukaan pelindung diri seberat 5,0 kg/m², LBM-50/G-FP (APP -5 ºC). Terdiri dari penguat polyester felt yang diperkuat, dilapisi di kedua sisinya dengan bitumen modifikasi polimer (pliability -5ºC) jenis mastic. Pada sisi atas lembaran, perlindungan mineral berwarna abu-abu muda digunakan sebagai bahan pelindung. Bahan anti-perekat yang digunakan pada sisi bawah adalah film polyethylene. Dites sesuai dengan standar metode pengujian EN.
Spesifikasi Umum
- Panjang (cm): 1000
- Lebar (cm): 100
- Ketebalan (mm): 3.5 (SOLAPO)
- Kode Produk: 141842
IMPERDAN FP 50 GP
Waterproofing sheet of polymer modified bitumen (pliability -5°C) with mineral self-protection.
Spesifikasi Data
| Mass per unit area (nominal) (kg/m²) | 5 | – |
| External fire behaviour | Broof(t1) | UNE-EN 1187;UNE-EN 13501-5 |
| Durability flexibility | +5 ± 5 | – |
| Creep durability (ºC) | 120 ±10 | UN-EN 1110 |
| Elongation at break longitudinal (%) | 20 ±15 | UNE-EN 12311-1 |
| Elongation at transverse break (%) | 20 ±15 | UNE-EN 12311-1 |
| Water vapour resistance factor (μ) | 20.000 | UNE-EN 1931 |
| Low temperature flexibility (ºC) | <-5 | UNE-EN 1109 |
| Reaction to fire | E | UNE-EN 11925-2; UNE-EN 13501-1 |
| Resistance to static loading (kg) | >15 | UNE-EN 12730 |
| Resistance to root penetration | No Pasa | EN 13984 |
| Longitudinal tensile strength (N / 5cm) | 700 ± 200 | UNE-EN 12311-1 |
| Transverse tensile strength (N / 5cm) | 450 ± 150 | UNE-EN 12311-1 |
| Longitudinal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Transversal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Resistance to impact, A (mm) | >900 | UNE-EN 12691 |
| Joint Strength: Welding Shear | 200 ± 100 | UNE-EN 12317-1 |
| Hazardous substances | NPD | – |
Description

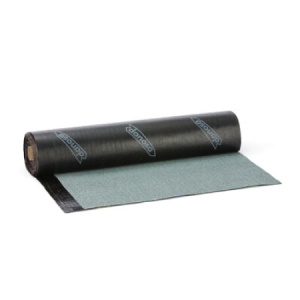

IMPERDAN FP 50 GP (10×1) is a waterproofing bituminous sheet with self-protected surface of 5.0 kg/m², LBM-50/G-FP (APP -5 ºC). Composed of a reinforced polyester felt reinforcement, covered on both sides with polymer modified bitumen (pliability -5ºC) mastic. On the upper side of the sheet, mineral protection in light grey colour is used as protective material. The anti-adhesive material used on the lower side is polyethylene film. Tested according to standard EN test methods.
General Specification
- Length (cm): 1000
- Width (cm): 100
- Thickness (mm): 3.5 (SOLAPO)
- Product code: 141842
IMPERDAN FP 50 GP
Waterproofing sheet of polymer modified bitumen (pliability -5°C) with mineral self-protection.
Data Specification
| Mass per unit area (nominal) (kg/m²) | 5 | – |
| External fire behaviour | Broof(t1) | UNE-EN 1187;UNE-EN 13501-5 |
| Durability flexibility | +5 ± 5 | – |
| Creep durability (ºC) | 120 ±10 | UN-EN 1110 |
| Elongation at break longitudinal (%) | 20 ±15 | UNE-EN 12311-1 |
| Elongation at transverse break (%) | 20 ±15 | UNE-EN 12311-1 |
| Water vapour resistance factor (μ) | 20.000 | UNE-EN 1931 |
| Low temperature flexibility (ºC) | <-5 | UNE-EN 1109 |
| Reaction to fire | E | UNE-EN 11925-2; UNE-EN 13501-1 |
| Resistance to static loading (kg) | >15 | UNE-EN 12730 |
| Resistance to root penetration | No Pasa | EN 13984 |
| Longitudinal tensile strength (N / 5cm) | 700 ± 200 | UNE-EN 12311-1 |
| Transverse tensile strength (N / 5cm) | 450 ± 150 | UNE-EN 12311-1 |
| Longitudinal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Transversal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Resistance to impact, A (mm) | >900 | UNE-EN 12691 |
| Joint Strength: Welding Shear | 200 ± 100 | UNE-EN 12317-1 |
| Hazardous substances | NPD | – |
