Deskripsi

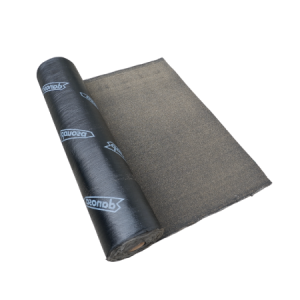

IMPERDAN FP 3 MM AP adalah lembaran bitumen waterproofing dengan permukaan berpasir, ketebalan 3 mm. Terdiri dari penguat non-woven polyester felt dan dilapisi di kedua sisi dengan bitumen polimer modifikasi (pliability -5ºC) mastic. Membran dengan permukaan atas berpasir dan permukaan bawah berfilm polyethylene. Dites sesuai dengan metode pengujian standar EN.
Spesifikasi Umum
- Panjang (cm): 1000
- Lebar (cm): 100
- Ketebalan (mm): 3
- Kode Produk: 141823
IMPERDAN FP 3MM AP
APP plastomeric 3 mm AVCL. Sanded. Torch Applied.
Spesifikasi Data
| External fire behaviour | PND | UNE-EN 1187; UNE-EN 13501-5 |
| Durability flexibility | +5 ± 5 | – |
| Creep durability (ºC) | 120 ±10 | UN-EN 1110 |
| Longitudinal traction durability (N / 5cm) | 700 ± 200 | – |
| Transversal tensile durability (N/5cm) | 450 ± 150 | – |
| Elongation at break longitudinal (%) | 20 ±15 | UNE-EN 12311-1 |
| Elongation at transverse break (%) | 20 ±15 | UNE-EN 12311-1 |
| Water vapour resistance factor (μ) | 100000 | UNE-EN 1931 |
| Low temperature flexibility (ºC) | <-5 | UNE-EN 1109 |
| Reaction to fire | E | UNE-EN 11925-2; UNE-EN 13501-1 |
| Resistance to static loading (kg) | >15 | UNE-EN 12730 |
| Resistance to root penetration | No Pasa | EN 13948 |
| Longitudinal tensile strength (N / 5cm) | 700 ± 200 | UNE-EN 12311-1 |
| Transverse tensile strength (N / 5cm) | 450 ± 150 | UNE-EN 12311-1 |
| Longitudinal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Transversal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Resistance to impact, A (mm) | >900 | UNE-EN 12691 |
| Joint Strength: Welding Shear | 450 ±150 | UNE-EN 12317-1 |
| Hazardous substances | NPD | – |
Description
IMPERDAN FP 3 MM AP is a waterproofing bituminous sheet with sanded finishing, 3 mm thickness. Composed of a non-woven polyester felt reinforcement and covered on both sides with polymer modified bitumen (pliability -5ºC) mastic. Membrane with an upper surface finish of sand and a lower surface finish of polyethylene film. Tested according to standard EN test methods.
General Specification
- Length (cm): 1000
- Width (cm): 100
- Thickness (mm): 3
- Product code: 141823
IMPERDAN FP 3MM AP
APP plastomeric 3 mm AVCL. Sanded. Torch Applied.
Data Specification
| External fire behaviour | PND | UNE-EN 1187; UNE-EN 13501-5 |
| Durability flexibility | +5 ± 5 | – |
| Creep durability (ºC) | 120 ±10 | UN-EN 1110 |
| Longitudinal traction durability (N / 5cm) | 700 ± 200 | – |
| Transversal tensile durability (N/5cm) | 450 ± 150 | – |
| Elongation at break longitudinal (%) | 20 ±15 | UNE-EN 12311-1 |
| Elongation at transverse break (%) | 20 ±15 | UNE-EN 12311-1 |
| Water vapour resistance factor (μ) | 100000 | UNE-EN 1931 |
| Low temperature flexibility (ºC) | <-5 | UNE-EN 1109 |
| Reaction to fire | E | UNE-EN 11925-2; UNE-EN 13501-1 |
| Resistance to static loading (kg) | >15 | UNE-EN 12730 |
| Resistance to root penetration | No Pasa | EN 13948 |
| Longitudinal tensile strength (N / 5cm) | 700 ± 200 | UNE-EN 12311-1 |
| Transverse tensile strength (N / 5cm) | 450 ± 150 | UNE-EN 12311-1 |
| Longitudinal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Transversal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Resistance to impact, A (mm) | >900 | UNE-EN 12691 |
| Joint Strength: Welding Shear | 450 ±150 | UNE-EN 12317-1 |
| Hazardous substances | NPD | – |
