Deskripsi

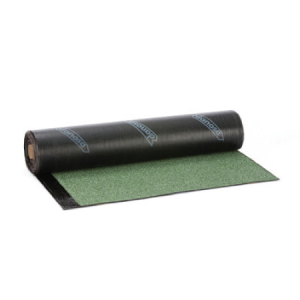

Lembaran penutup (cap sheet) modifikasi APP bitumen yang diperkuat dengan kain polyester non-woven. Termasuk aditif anti-akar untuk spesifikasi atap hidup. Permukaan atas dilapisi dengan chippings mineral berwarna hijau-abu. Permukaan bawah memiliki lapisan film termofusible cepat leleh. Dirancang untuk aplikasi torch-applied dan detail Safe2Torch menggunakan udara panas.
Spesifikasi Umum
- Panjang (cm): 800
- Lebar (cm): 100
- Warna: Hijau
- Ketebalan (mm): 3.5(SOLAPO)
- Kode Produk: 141983
ESTERDAN 50 GP POL GARDEN
Tough APP plastomeric 5 kg/m2 underlay. Root inhibitor. Torch applied.
Spesifikasi Data
| Mass per unit area (nominal) (kg/m²) | 5 | – |
| Density (kg/m³) | 1428 | – |
| External fire behaviour | Broof(t1) | UNE-EN 1187; UNE-EN 13501-5 |
| Durability flexibility | -5 ± 5 | – |
| Creep durability (ºC) | 120 ±10 | UN-EN 1110 |
| Elongation at break longitudinal (%) | 45 ±15 | UNE-EN 12311-1 |
| Elongation at transverse break (%) | 45 ±15 | UNE-EN 12311-1 |
| Water vapour resistance factor (μ) | 20.000 | UNE-EN 1931 |
| Low temperature flexibility (ºC) | <-15 | UNE-EN 1109 |
| Reaction to fire | E | UNE-EN 11925-2; UNE-EN 13501-1 |
| Resistance to static loading (kg) | >15 | UNE-EN 12730 |
| Resistance to root penetration | Pasa | UNE-EN 13948 |
| Longitudinal tensile strength (N / 5cm) | 700 ± 200 | UNE-EN 12311-1 |
| Transverse tensile strength (N / 5cm) | 450 ± 150 | UNE-EN 12311-1 |
| Longitudinal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Transversal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Resistance to impact, A (mm) | >900 | UNE-EN 12691 |
| Resistance to impact, B (mm) | >1000 | – |
| Joint Strength: Welding Shear | 450 ± 150 | UNE-EN 12317-1 |
| Hazardous substances | PND | – |
Lingkup Penggunaan
- Karena telah dilengkapi dengan perlakuan anti-akar, lembaran ini dapat digunakan sebagai lapisan atas pada membran lapisan ganda dengan perlindungan pengikat yang berat (membran PA-8 sesuai dengan standar UNE 104-402/96) menggantikan lembaran plastik, dalam kasus di mana atap diperkirakan akan memiliki berbagai fungsi seperti untuk (pejalan kaki, taman, kendaraan, galeri layanan, dll).
- Membran kedap air.
- Lembaran atas membran multilayer dengan mineral self-protection untuk waterproofing pada atap hijau intensif dan ekstensif.
- Membran adhesive berlapis tunggal yang terproteksi untuk waterproofing pada atap hijau intensif dan ekstensif.
Kelebihan & Manfaat
- Kemampuan pergerakan yang tinggi.
- Performa Baik dalam Sistem Paku.
- Membantu meningkatkan daya tahan lembaran atap.
- Mempertahankan sifat-sifatnya lebih baik seiring waktu.
- Cocok untuk atap dengan kemiringan nol (lihat sertifikat terkait).
- Stabilitas dimensi yang tinggi.
- Kekuatan tarik yang tinggi dan elongasi yang tinggi pada saat putus.
- Ketahanan tinggi terhadap robekan.
- Ketahanan tinggi terhadap tusukan statis dan dinamis.
- Tahan terhadap pembusukan.
- Membran terbuat dari mastik bitumen yang dimodifikasi dengan polimer plastomerik yang memberikan kinerja superior dalam hal reaksi terhadap suhu tinggi dan rendah, elastisitas dan ketahanan terhadap penuaan, yang mengarah pada daya tahan lembaran yang lebih tinggi dan keamanan membran waterproofing yang lebih besar.
- Membatasi Deformasi dan Tegangan pada Membran Waterproofing.
- Sangat stabil dalam jangka panjang.
- Memiliki perlindungan tusukan yang baik terhadap kemungkinan kerusakan mekanis, yang berasal dari lalu lintas pejalan kaki yang sesekali terjadi pada atap datar.
Description
Bituminous APP modified capsheet reinforced with a non-woven polyester felt. Includes root-resistant additive for living roof specifications. The upper surface is finished with grey-green mineral chippings. The underside has a quick-melt thermofusible film. Designed for torch-applied applications and Safe2Torch details using hot-air.
General Specification
- Length (cm): 800
- Width (cm): 100
- Colour: Green
- Thickness (mm): 3.5(SOLAPO)
- Product code: 141983
ESTERDAN 50 GP POL GARDEN
Tough APP plastomeric 5 kg/m2 underlay. Root inhibitor. Torch applied.
Data Specification
| Mass per unit area (nominal) (kg/m²) | 5 | – |
| Density (kg/m³) | 1428 | – |
| External fire behaviour | Broof(t1) | UNE-EN 1187; UNE-EN 13501-5 |
| Durability flexibility | -5 ± 5 | – |
| Creep durability (ºC) | 120 ±10 | UN-EN 1110 |
| Elongation at break longitudinal (%) | 45 ±15 | UNE-EN 12311-1 |
| Elongation at transverse break (%) | 45 ±15 | UNE-EN 12311-1 |
| Water vapour resistance factor (μ) | 20.000 | UNE-EN 1931 |
| Low temperature flexibility (ºC) | <-15 | UNE-EN 1109 |
| Reaction to fire | E | UNE-EN 11925-2; UNE-EN 13501-1 |
| Resistance to static loading (kg) | >15 | UNE-EN 12730 |
| Resistance to root penetration | Pasa | UNE-EN 13948 |
| Longitudinal tensile strength (N / 5cm) | 700 ± 200 | UNE-EN 12311-1 |
| Transverse tensile strength (N / 5cm) | 450 ± 150 | UNE-EN 12311-1 |
| Longitudinal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Transversal resistance to tearing (nail shank) (N) | NPD | UNE-EN 12310-1 |
| Resistance to impact, A (mm) | >900 | UNE-EN 12691 |
| Resistance to impact, B (mm) | >1000 | – |
| Joint Strength: Welding Shear | 450 ± 150 | UNE-EN 12317-1 |
| Hazardous substances | PND | – |
Scope
- As it has an anti-root treatment, this sheet can be used as a top layer in double-layer membranes with heavy bonded protection (PA-8 membrane according to UNE 104-402/96 standard) replacing the plasticised sheet, in those cases in which the roof is expected to have different uses (pedestrians, garden, vehicles, service galleries, etc).
- Tanking membrane.
- Multilayer membrane top sheet with mineral self-protection for waterproofing intensive and extensive green roofs.
- Adheredself-protected single-layer membrane for waterproofing intensive and extensive green roofs.
Advantages & Benefits
- High movement capability.
- Good performance in nailed systems.
- Helps to increase the durability of the sheet.
- It retains its properties better over time.
- Suitable for zero fall roofs (see related certificates).
- High dimensional stability.
- High tensile strength and high elongation at break.
- High resistance to tearing.
- High resistance to static and dynamic piercing.
- Rot-proof.
- The membrane, made of a bitumen mastic modified with plastomeric polymers, provides superior performance in terms of reaction at high and low temperatures, elasticity and resistance to ageing, which leads to greater durability of the sheet and greater safety of the waterproofing membrane.
- Limits deformations and stresses in the waterproofing membrane.
- Very stable in the long term.
- Has good piercing protection from possible mechanical damage, derived from the occasional pedestrian traffic typical of flat roofs.
